Some drainage applications involve more wastewater than a small domestic macerator is designed to handle. Large homes, villas, offices, hospitality properties and commercial premises may have several bathrooms and appliances connected to a common wastewater system.
When gravity drainage is unavailable or insufficient, a sewage lifting station can be considered.
A lifting station collects wastewater and pumps it toward the appropriate drainage connection. The system needs to be sized according to the volume of wastewater, the connected fixtures and the required pumping head.
For larger applications, the number of connected fixtures can make the choice of equipment particularly important. A system that is too small may not be appropriate for the expected load, while unnecessary oversizing can increase project costs.

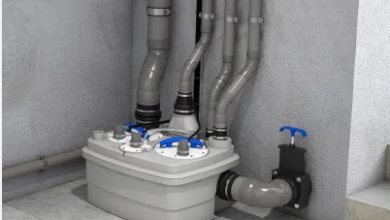

SFA’s Sanicubic 1 GR sewage lifting station is designed to handle wastewater from multiple kitchen and bathroom fixtures. The product is available in several versions and can provide lifting heights ranging from 20 to 39 metres depending on the model.
The system incorporates a grinder mechanism and multiple inlets, allowing it to receive wastewater from different fixtures. SFA specifies a maximum flow rate of up to 17 cubic metres per hour for the range.
This makes the product relevant to applications where a building requires a more substantial wastewater pumping solution than a single-fixture macerator.
One potential application is a large residential property. A villa may have several bathrooms, kitchen fixtures and utility appliances located where the main sewer connection cannot be reached through conventional gravity drainage.
Commercial environments can present similar challenges. Retail properties, offices and other facilities may need to manage wastewater from several areas without extensive excavation.
Another important feature for larger installations is monitoring. Sanicubic 1 GR is supplied with a remote-control box incorporating pneumatic control and audible and visual alarms, according to SFA’s product information. Such features can help building operators identify potential issues with the pumping system.
Installation planning remains critical. The pumping station should be positioned according to the manufacturer’s requirements, with suitable inlet and discharge pipework. Electrical connections, access for maintenance and alarm arrangements should also be incorporated into the project.
It is also important to distinguish between maximum lifting height and the actual performance required for a specific installation. A real drainage system contains pipe runs, bends and other hydraulic factors, so the final configuration should be assessed by a qualified professional.
Maintenance should be planned from the outset. Even robust commercial pumping equipment benefits from periodic inspection and cleaning as appropriate.
A sewage lifting station can provide significant flexibility for buildings where traditional gravity drainage is difficult. Rather than redesigning the entire property around the location of a sewer connection, wastewater can be collected and mechanically lifted to the required discharge point.
For larger residential or small commercial applications, Sanicubic 1 GR is one SFA solution that can be considered. The final model and configuration should always be selected according to the actual flow, head and wastewater requirements of the project.
